SWIFO Switch Edition

12-Port 800G Switch Tester

Ideal for Switch & Data Center Testing

SWIFO Switch Edition is an 800G test platform designed for AI networking and switching validation. Featuring a modular architecture and patented technologies, it enables 800G multi-port parallel testing, supporting 800GE to 10GE line-rate traffic, L1–L3 protocols, and RFC 2544 benchmarking. It is fully optimized for switch and data center testing.

Highlights
World's Highest 800G Port Density
9.6T Traffic Bandwidth
12x 800G concurrent testing
Max Test Efficiency
Ideal for production line or lab use
Full Compatibility
800G-100G rates
OSFP, OSFP-RHS, QSFP-DD/QSFP
L2/L3 Testing
In data center applications
Complete Test Automation with Exclusive Touchscreen Operation

High Capacity, High Density, Multi-Port

The SWIFO Switch Edition supports up to 12 ports of 800G with a total test bandwidth of 9.6 Tbps, and offers three optional interface types: QSFP-DD800, OSFP800, and OSFP‑RHS. It maintains backward compatibility with 400G QSFP112, 400G QSFP56‑DD, 200G QSFP28‑DD, 100G QSFP28, and 400G OSFP / RHS optical modules.
- World's Highest 800G Port Density

  12x 800G + 3x form factors
- ‌Modular Slot Design‌

  Flexible configuration based on requirements

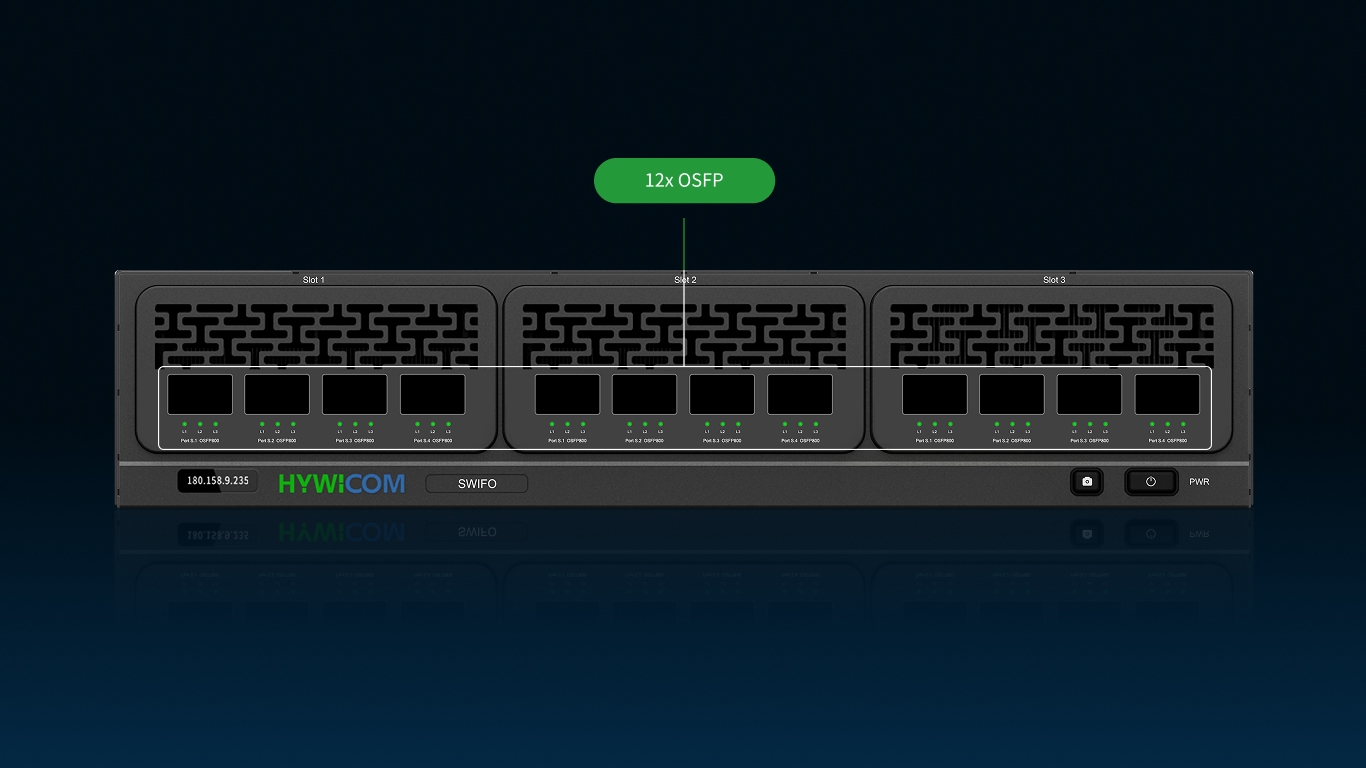

- Hybrid Multi-port

  12x OSFP

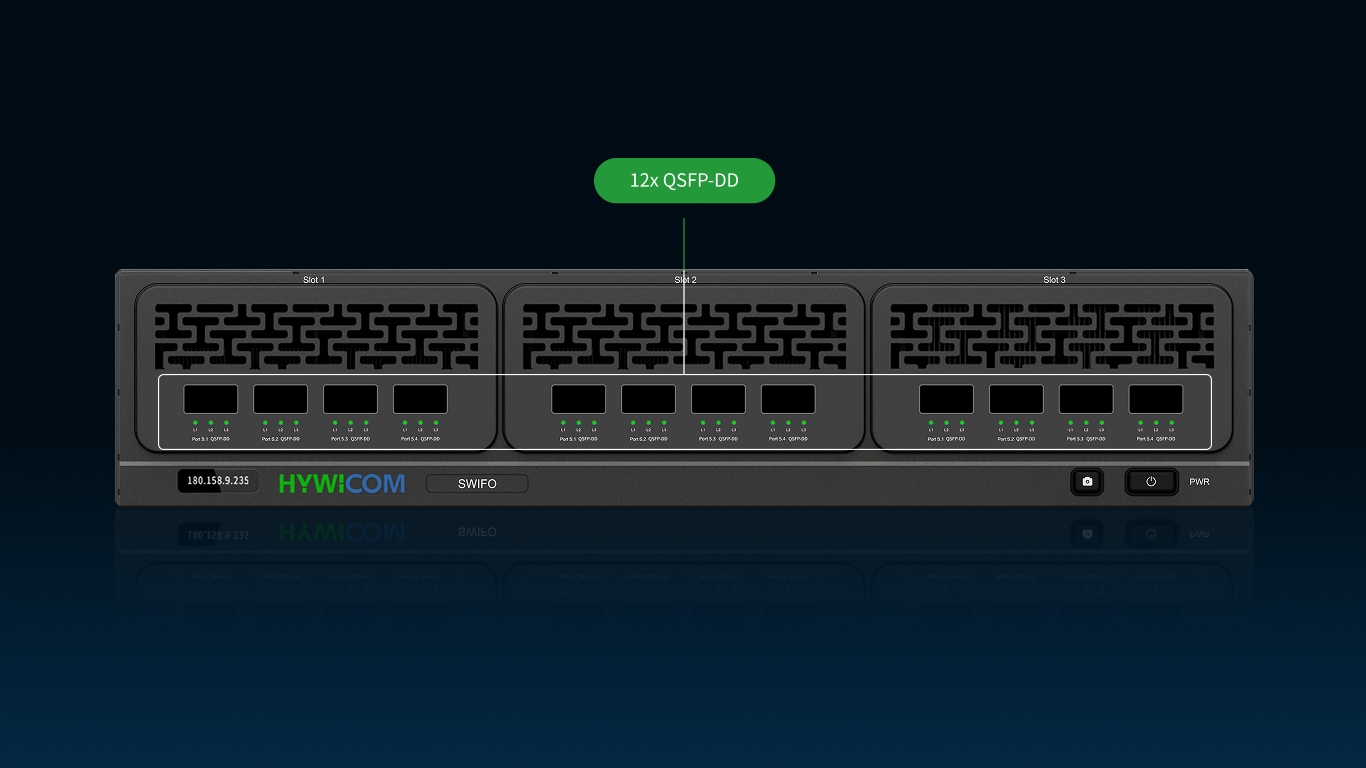

- Hybrid Multi-port

  12x QSFP-DD

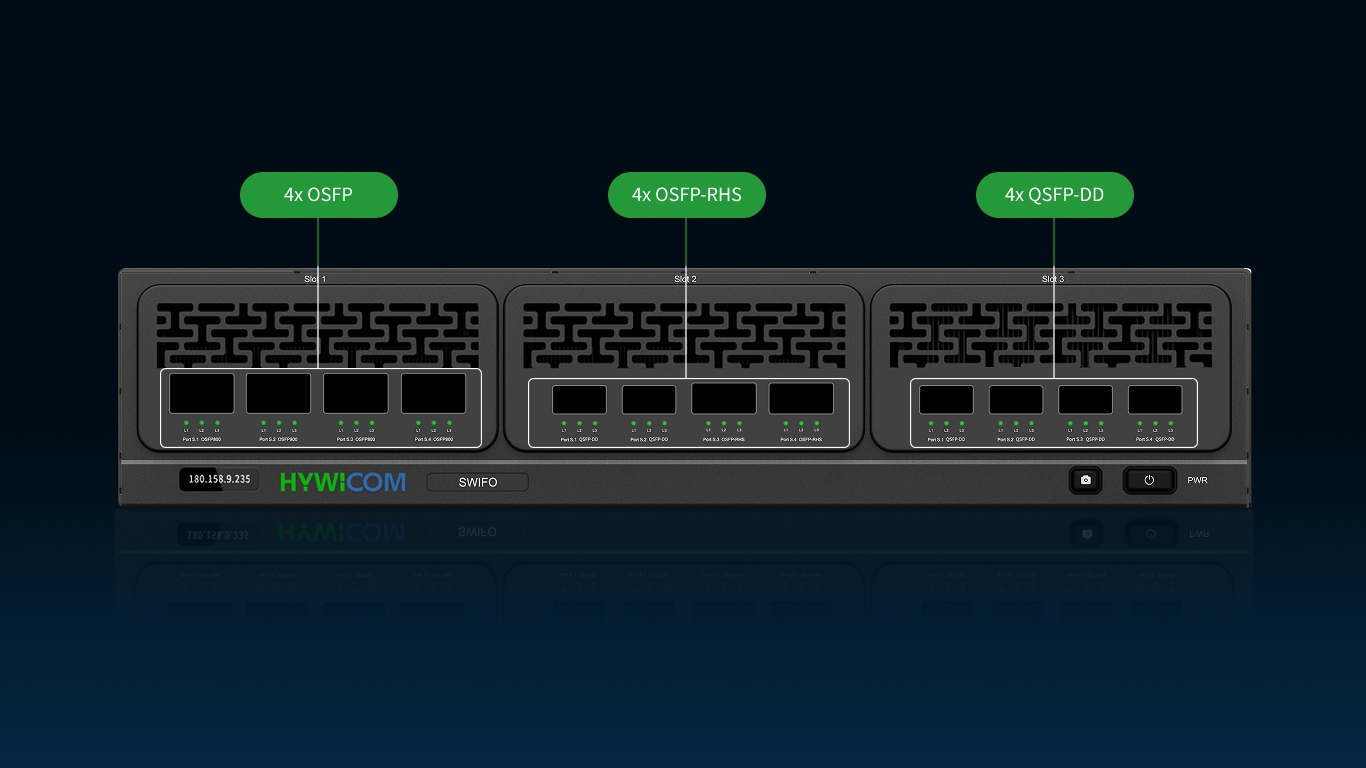

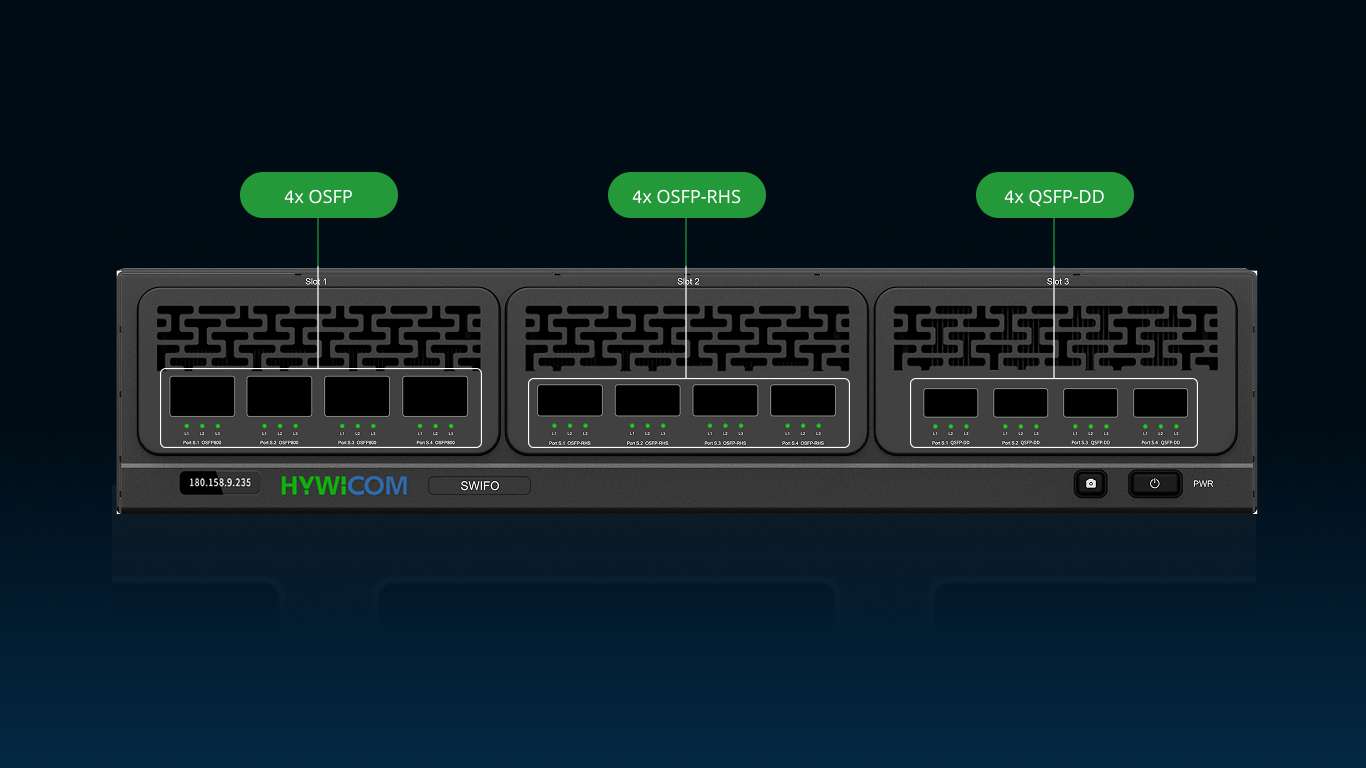

- Hybrid Multi-port

  4x OSFP + 4x OSFP-RHS + 4x QSFP-DD

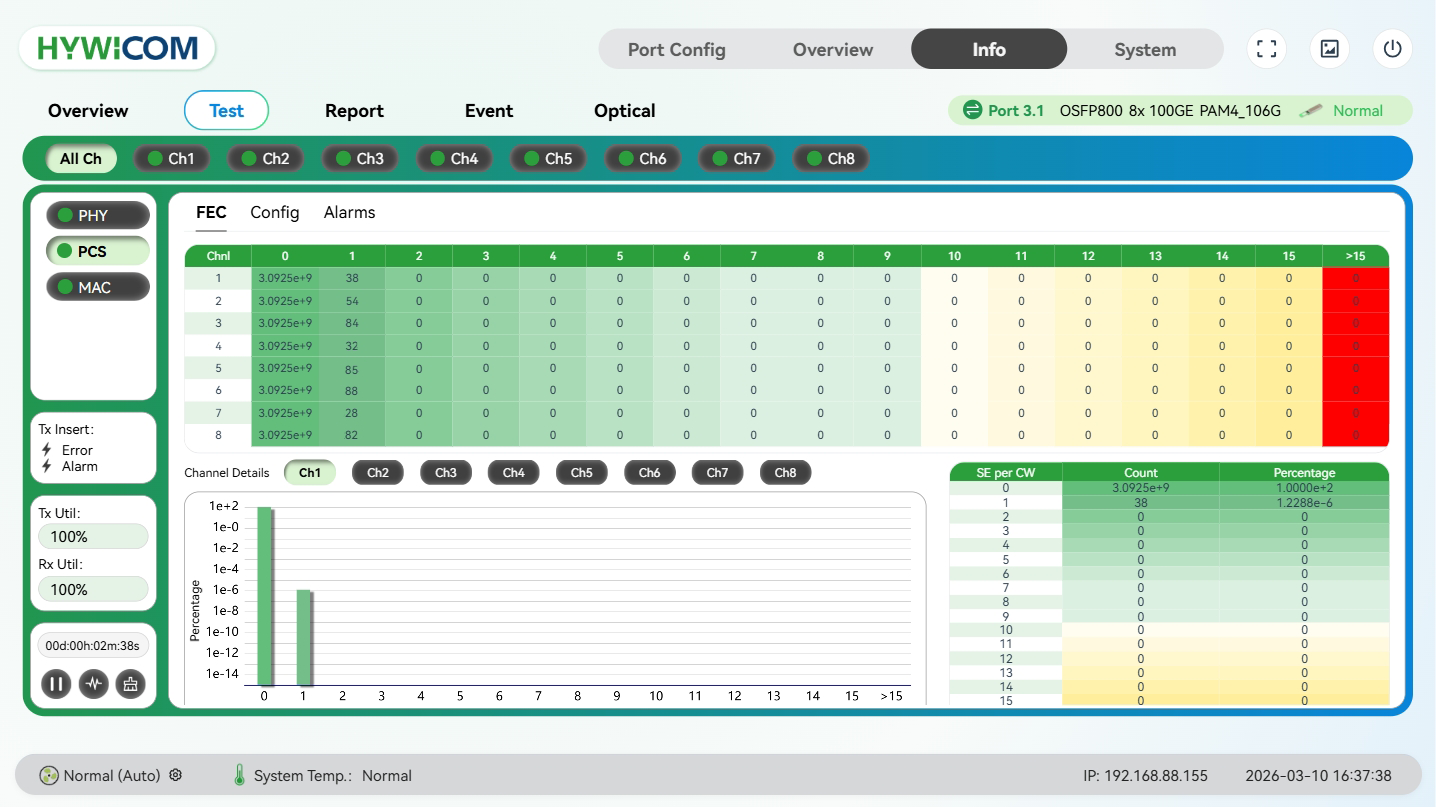

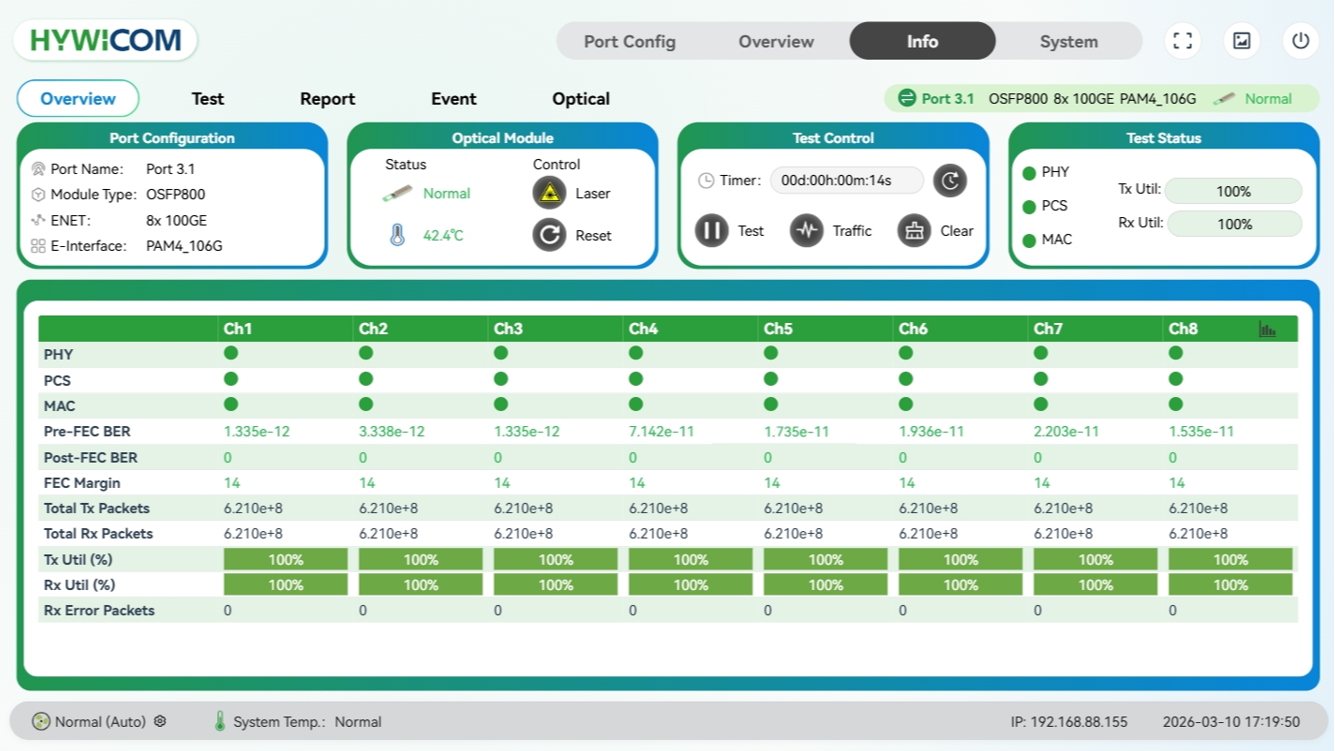

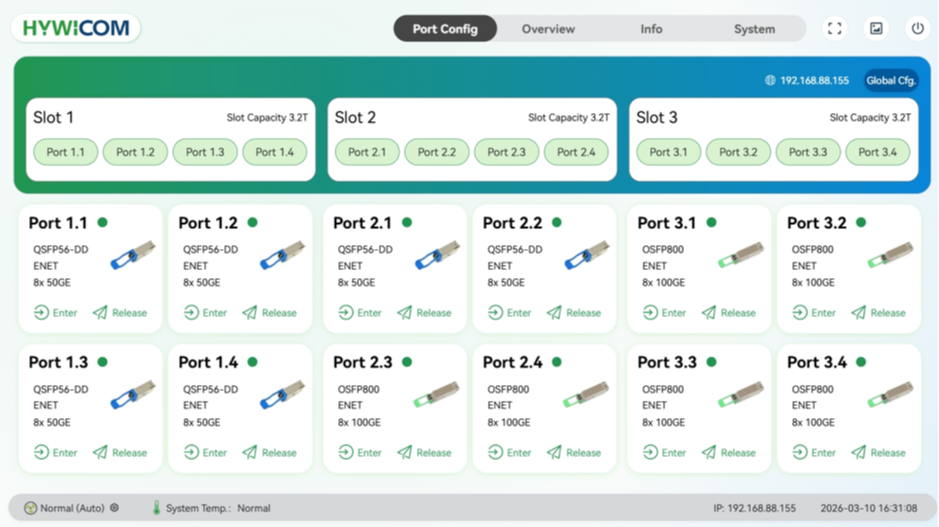

Simple, Efficient, and User‑Friendly

HYWICOM's latest fully graphical intelligent software platform retains its acclaimed user interface for improved operational efficiency, while delivering comprehensive monitoring and testing capabilities.
- User-friendly GUI

  Fully graphical intelligent software platform
- Simple & Easy to Use

  Single-page display for all functions & results
- High Testing Efficiency‌

  Test setup in just 4 steps
‌High-Efficiency 800G Switch Traffic Test Platform‌

The ‌SWIFO Switch Edition‌ delivers ‌line-rate 800GE-10GE traffic generation, statistics, and analysis‌, along with full ‌L1-L3 Ethernet protocol testing‌ and comprehensive ‌RFC 2544 benchmark testing‌.
- ‌Complete Ethernet Protocol Testing‌

  ‌Line-rate 800GE-10GE
  Traffic generation, statistics, and analysis
- Full Suite of RFC 2544 Benchmark Testing‌

  Includes ‌throughput, latency, frame loss rate,
  and back-to-back testing‌.
- <10-second Switching between Test Modes

  Compared to other testers, which take 3-5 minutes to cycle
  Significantly boosts efficiency by saving >90% time
