FRAEO 16T2

Multi-Port 1.6T (212G SerDes) Network Tester

Multi-Port 1.6T (224G SerDes) Network Tester.banner

1.6T Optical Module All-in-One Test Platform

FRAEO 16T2 is a state-of-the-art, high-density network test platform for 1.6T/800G optical transceivers, AOCs, and AECs. Its modular 3-slot architecture allows each slot to be independently configured with different test modules, delivering exceptional flexibility and supporting multi-rate and multiple form factors. Achieving industry-leading port density—up to 3 × 1.6T or 12 × 800G ports—the platform provides 9.6T aggregate capacity for full-line-rate, multi-port parallel testing. Each port runs independently at its own rate, with its own Ethernet protocol, letting you test different transceiver types and speeds in a single pass with no reconfiguration.

Highlights
3 Slots
Modular and flexible
True FEC
Real Ethernet traffic matching that of a 1.6T switch
Excellent
212G SerDes Performance
Multi-vendor interop tests
Multi-Port
+ Multi-Form Factor
3x 1.6T ports
3x form factors
4.8T Traffic Bandwidth
3x 1.6T concurrent & independent
CMIS 5.3-3.0
Incl. VDM & CDB

Flexible Configuration, Comprehensive Test Coverage

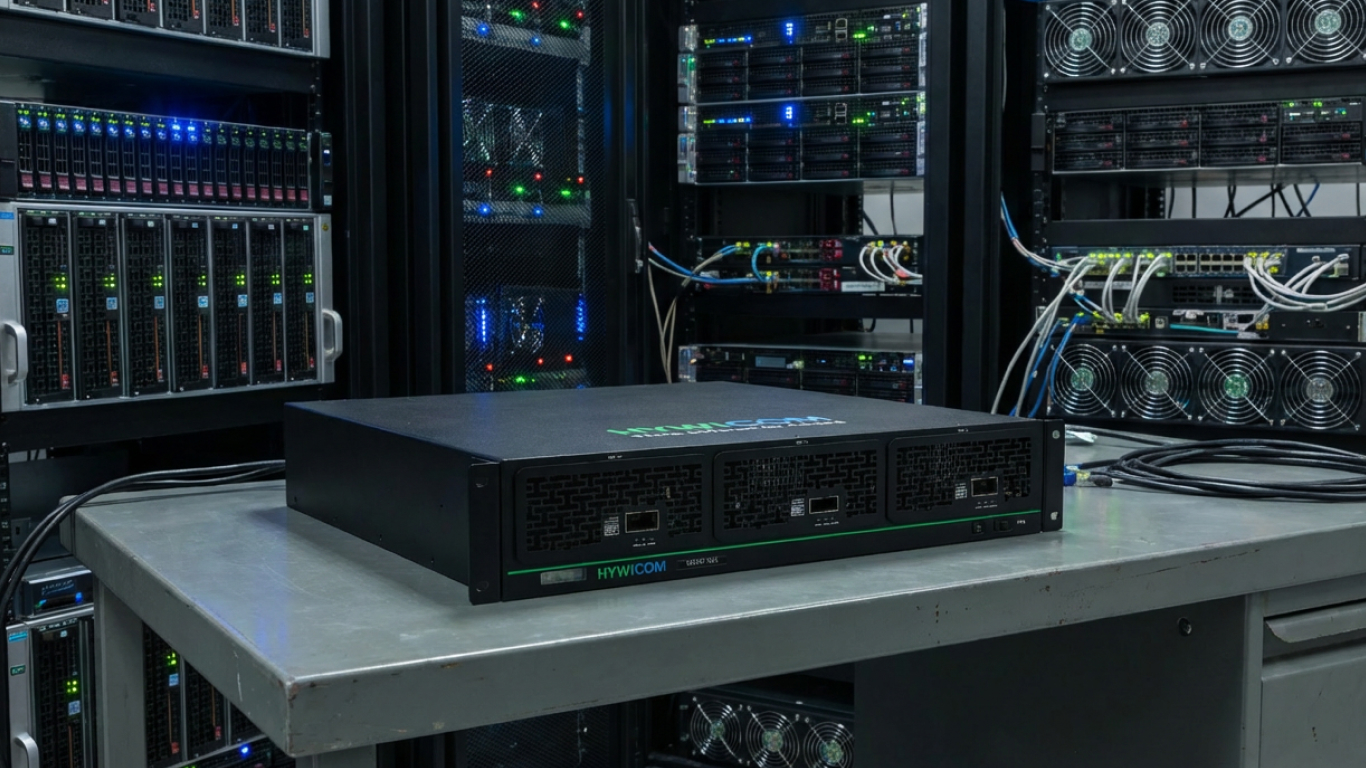

Featuring an innovative modular three-slot architecture, the FRAEO 16T2 supports flexible configuration from one 1.6T port up to three 1.6T ports, making it ideal for pay-as-you-grow deployment. In addition, each port can be flexibly configured for OSFP1600, OSFP1600-RHS, or future QSFP-DD1600 form factor, maximizing adaptability to complex AI network test scenarios.

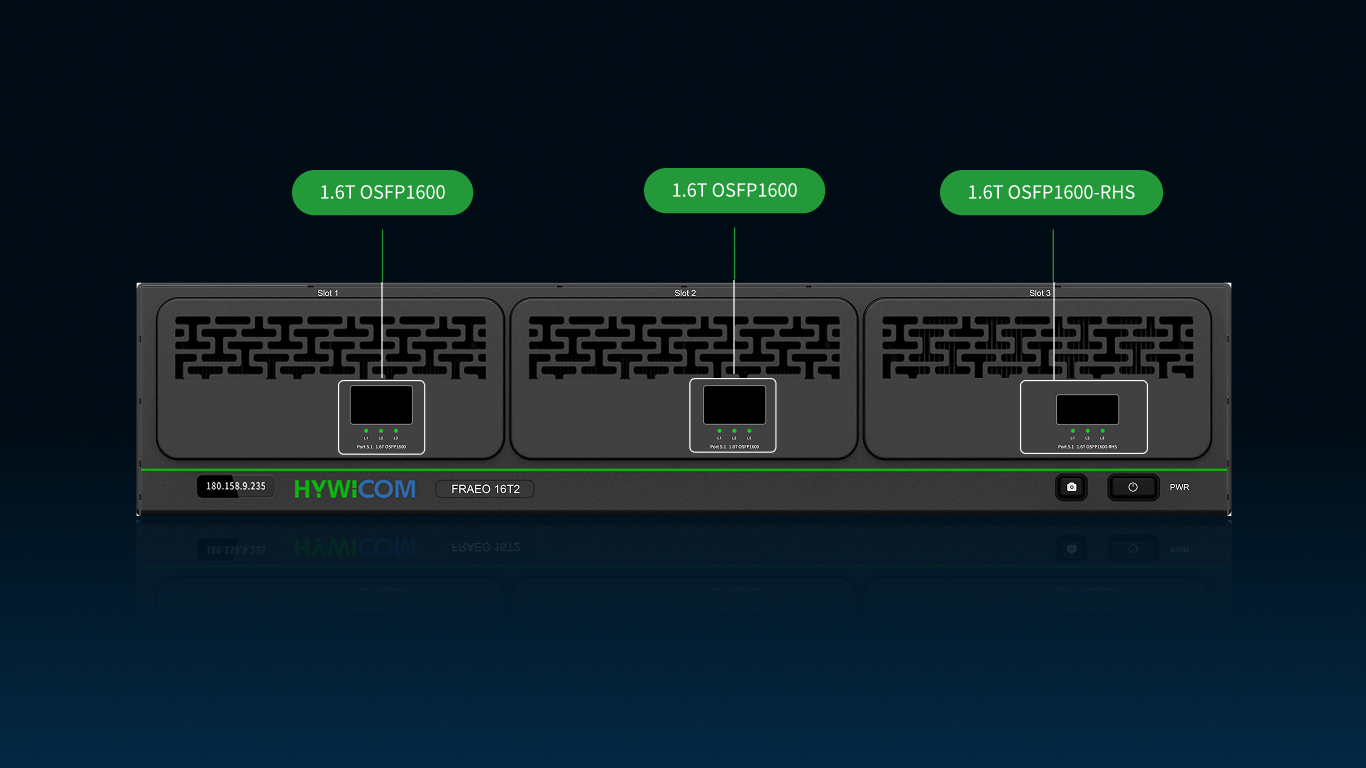

- Pure 1.6T Mode

  2x 1.6T OSFP1600 + 1x 1.6T OSFP1600-RHS

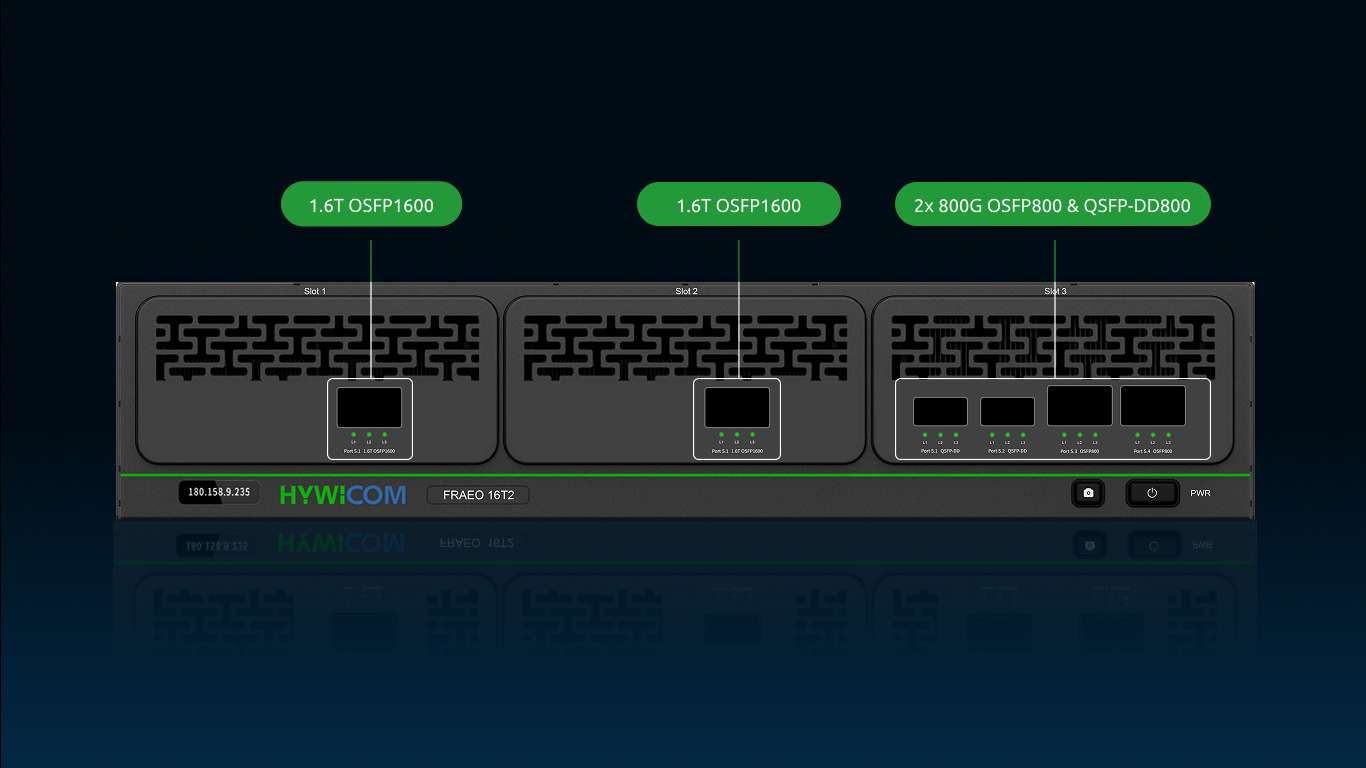

- Hybrid Mode: 1.6T + 800G

  2x 1.6T OSFP1600 + 2x 800G OSFP800 & QSFP-DD800
- 1.6T Multi-Vendor Interop Tests

  Industry-leading 212G SerDes performance
- Compact Footprint

  Ideal for R&D desktop testing

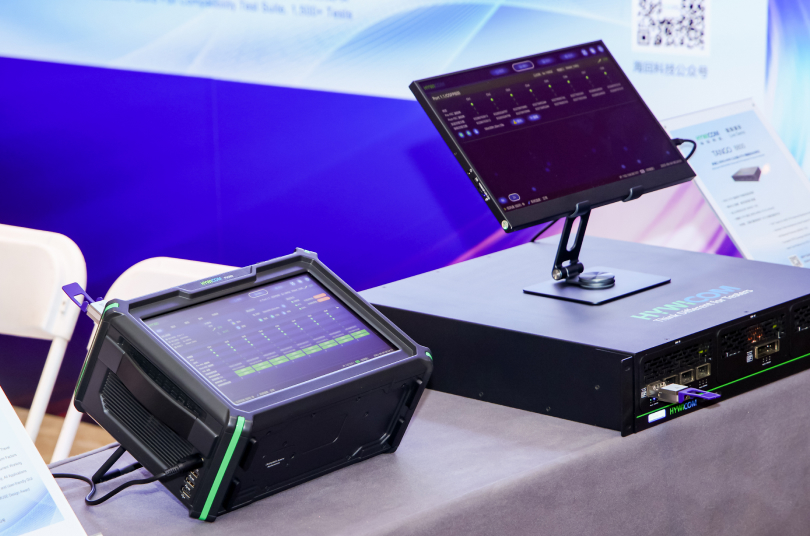

- Portability

  Ideal for exhibition & field deployment
- Touchscreen Operation

  Industry's only & extremely convenient
Simple, Efficient, and User‑Friendly

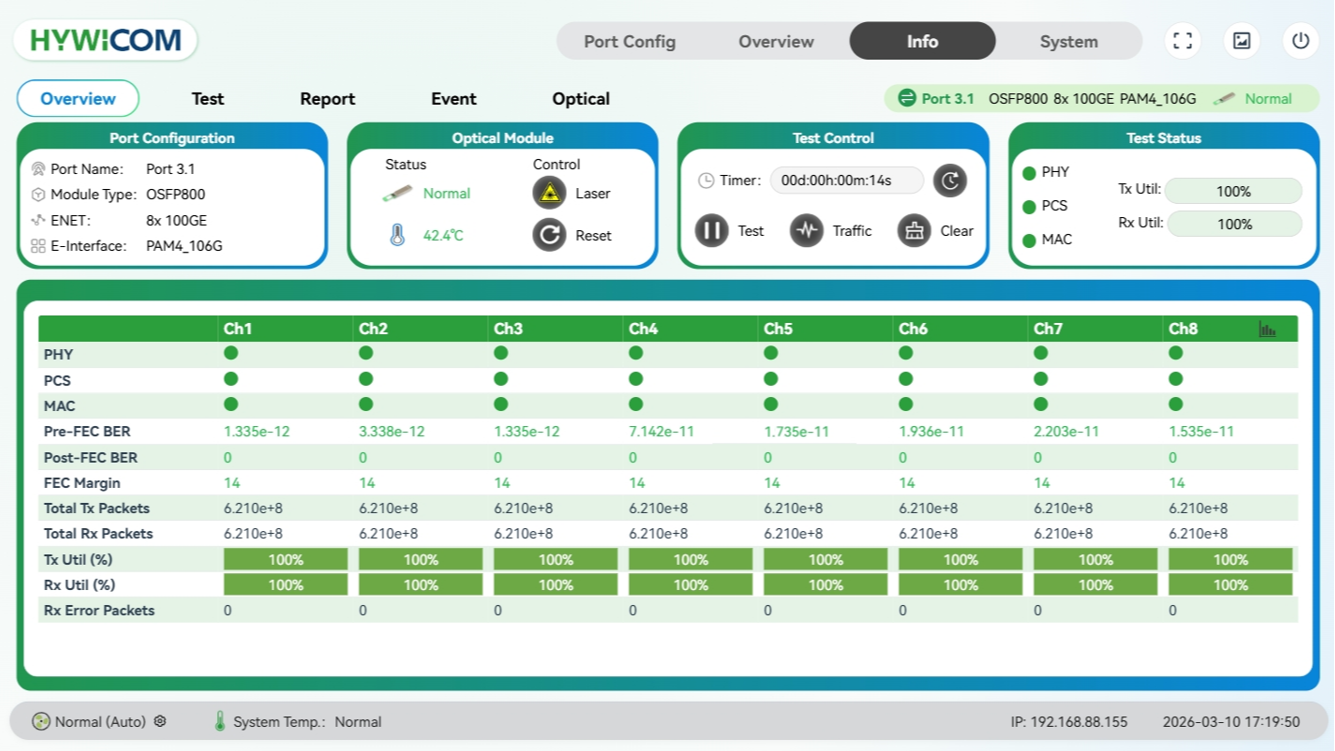

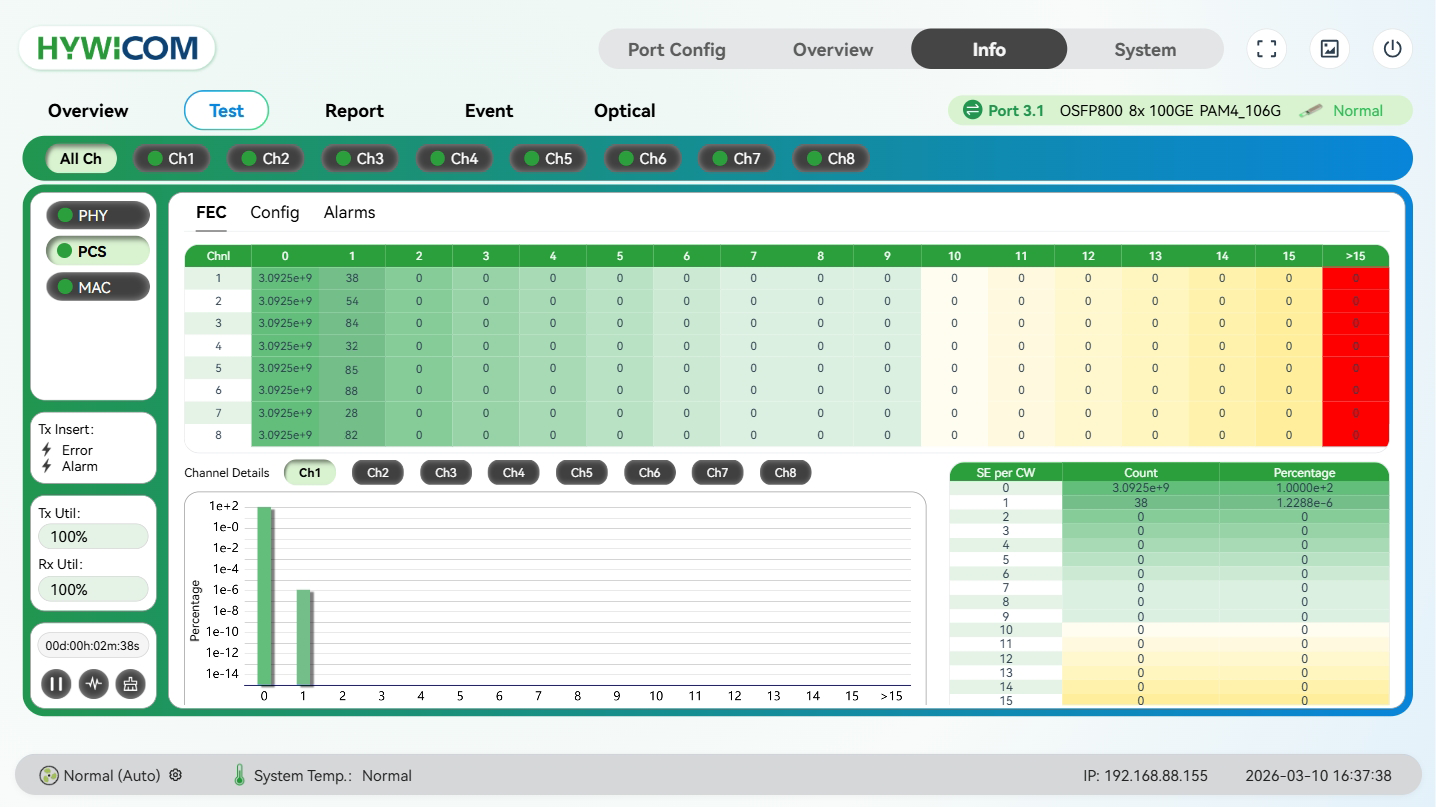

HYWICOM's latest fully graphical intelligent software platform retains its acclaimed user interface for improved operational efficiency, while delivering comprehensive monitoring and testing capabilities.

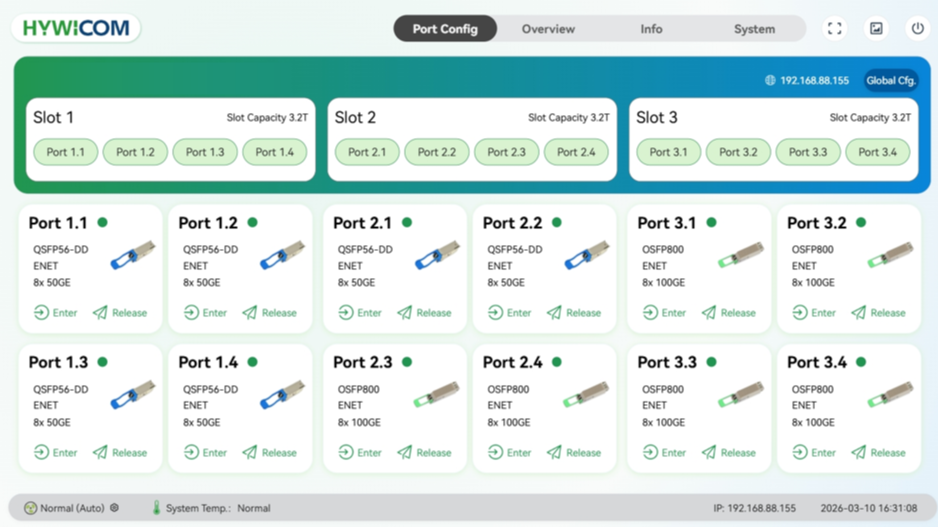

- User-friendly GUI

  Fully graphical intelligent software platform
- Simple & Easy to Use

  Single-page display for all functions & results
- High Testing Efficiency‌

  Test setup in just 4 steps
1.6T Full-Ecosystem Test Platform

The FRAEO 16T2 supports testing of 1.6T switches, 1.6T server NICs, 1.6T optical modules/AOCs/AECs, and breakout applications, including testing of 1.6T coherent optical modules (e.g., 1600ZR). Additionally, this platform features the industry's only CMIS compliance test suite with complete protocol coverage from CMIS 5.3 to 3.0, ensuring seamless management interface compatibility between optical modules/AOC/AEC and 1.6T/800G switches.
- CMIS Full Compliance Testing

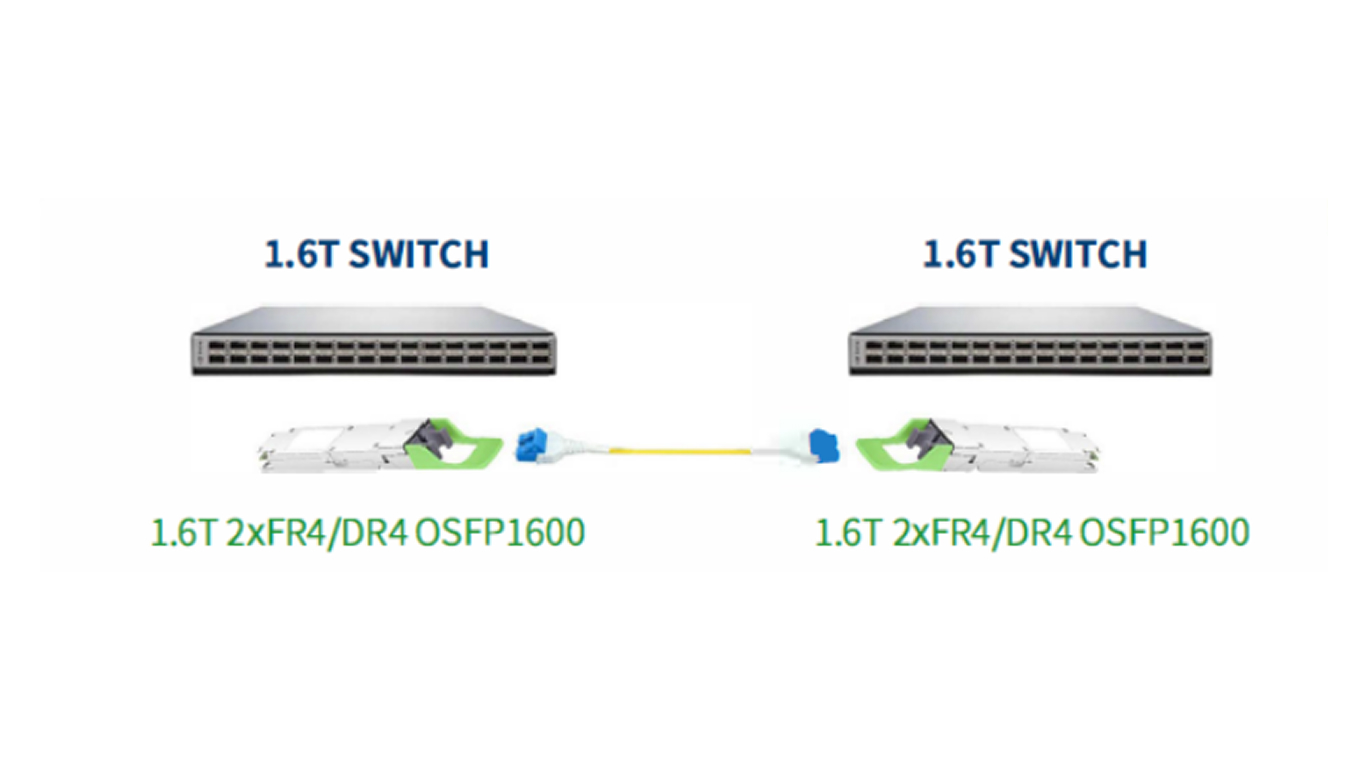

- Simulates Interconnection

  Between 2x 1.6T switches
- Simulates a 1.6T Switch to 2x 800G Switches

  Connecting to 2x 800G switches
- Simulates a 1.6T Switch to 2x 800G NICs

  Connecting to 2x 800G NlCs
