FRAEO 8800

Multi-Port 800G Network Tester

Hybrid Port, Intelligent 800G Testing

FRAEO 8800 is a high-density Ethernet test platform for 800G/400G optical transceivers, AOCs, and AECs. Its modular dual-slot architecture allows each slot to be independently configured with different test modules, delivering exceptional flexibility and supporting multi-rate and multiple form factors. Achieving industry-leading port density—up to 8 × 800G ports—the platform provides 6.4T aggregate capacity for full-line-rate, multi-port parallel testing. Each port runs independently at its own rate, letting you test different transceiver types and speeds in a single pass with no reconfiguration. Moreover, it delivers full coverage for pluggable coherent DCO module testing.

Highlights
3.2T Traffic Bandwidth
4x 800G concurrent testing
Multi-User Sharing
Maximize tester utilization
Multi-Port + Multi-Form Factor
OSFP800/RHS, QSFP-DD800
CMIS 5.3-3.0
Incl. VDM & CDB
Breakout 1:N AOC/AEC Testing

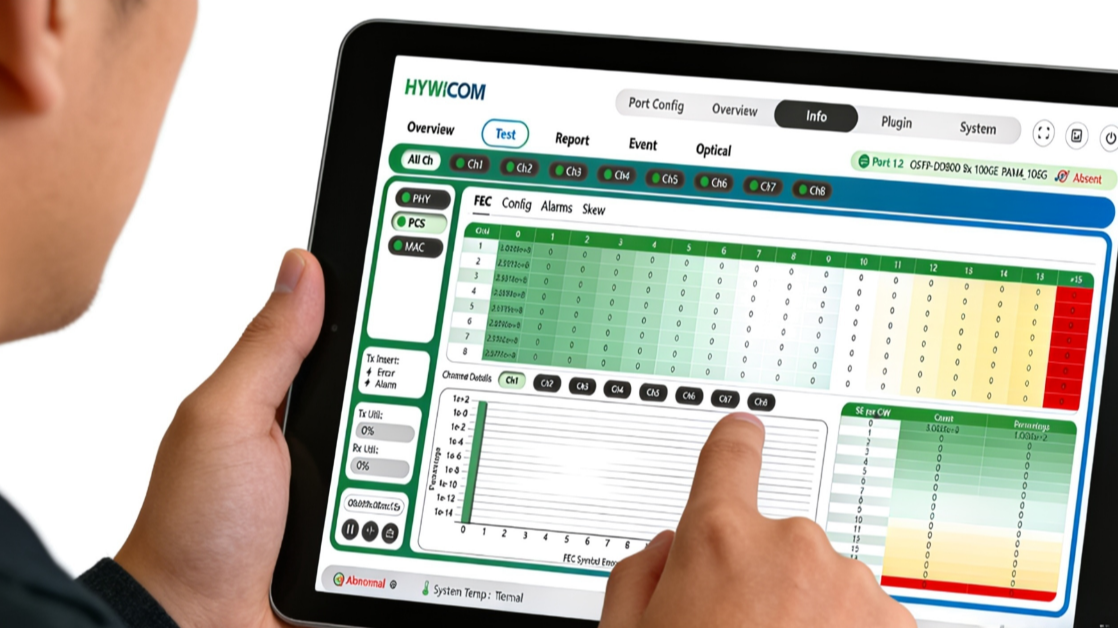

Touchscreen Operation
Industry's only & extremely convenient

Full-Rate Compatibility & Mixed-Rate Testing

The FRAEO 8800 supports up to 4 ports and 3.2T traffic testing capacity, offering QSFP-DD800 and OSFP800/RHS interfaces with backward compatibility. It supports testing from 800G to 100G, including mixed-rate testing.

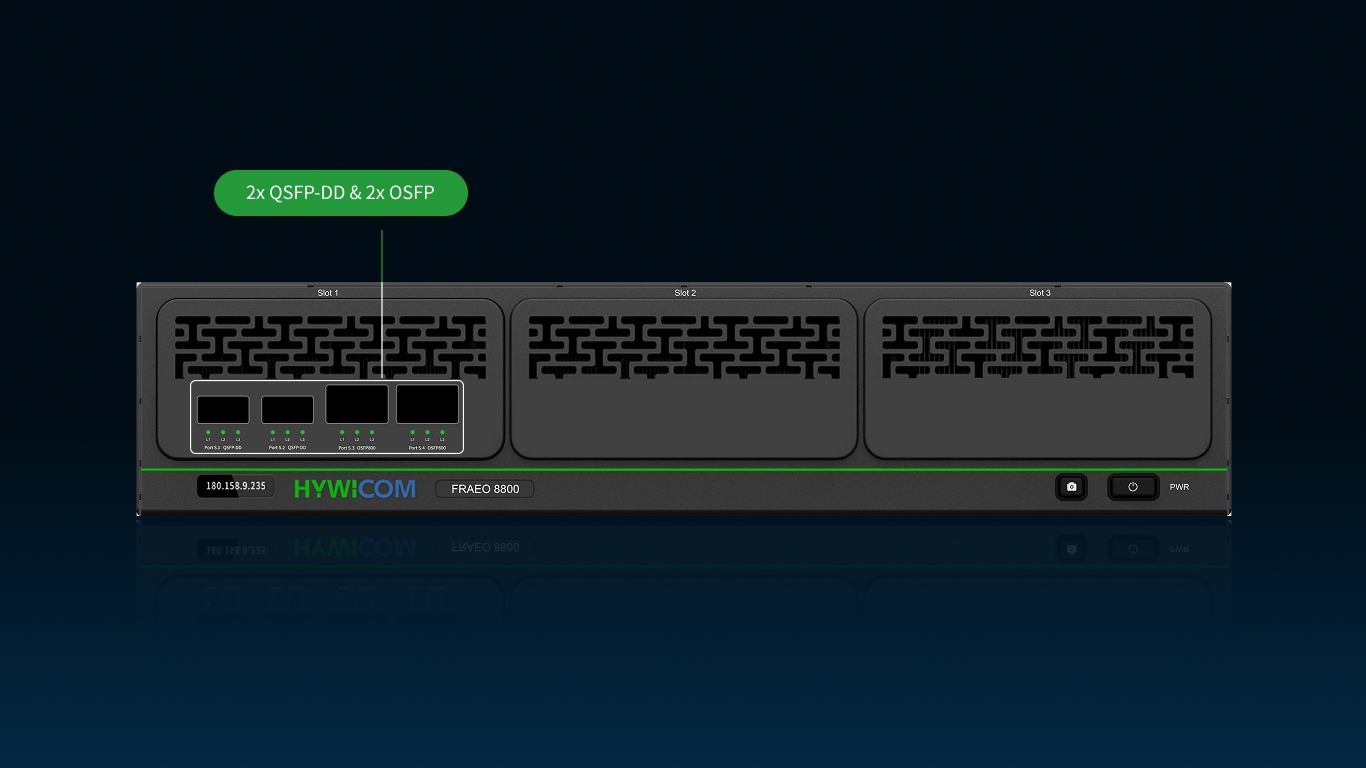

- Typical config. 1

  2x QSFP-DD + 2x OSFP
- Typical config. 2

  2x QSFP-DD + 1x OSFP + 1x OSFP-RHS
- All-in-One Integrated System

  Works right out of the box
- Touchscreen Operation

  Industry's Only & Extremely Convenient
- All Rates, All Compatibility, All Applications

  Compatibility from 800G to 100G
  Full application supportfrom 800GE to 10GE

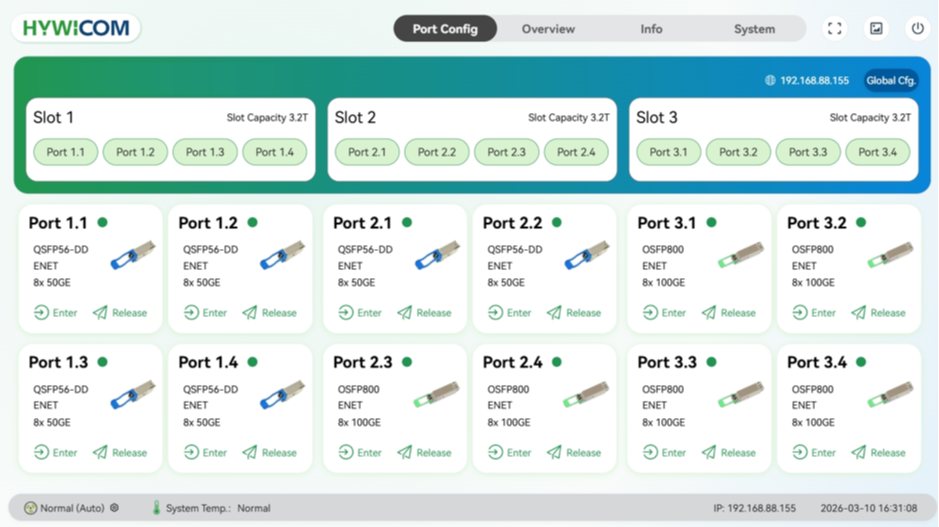

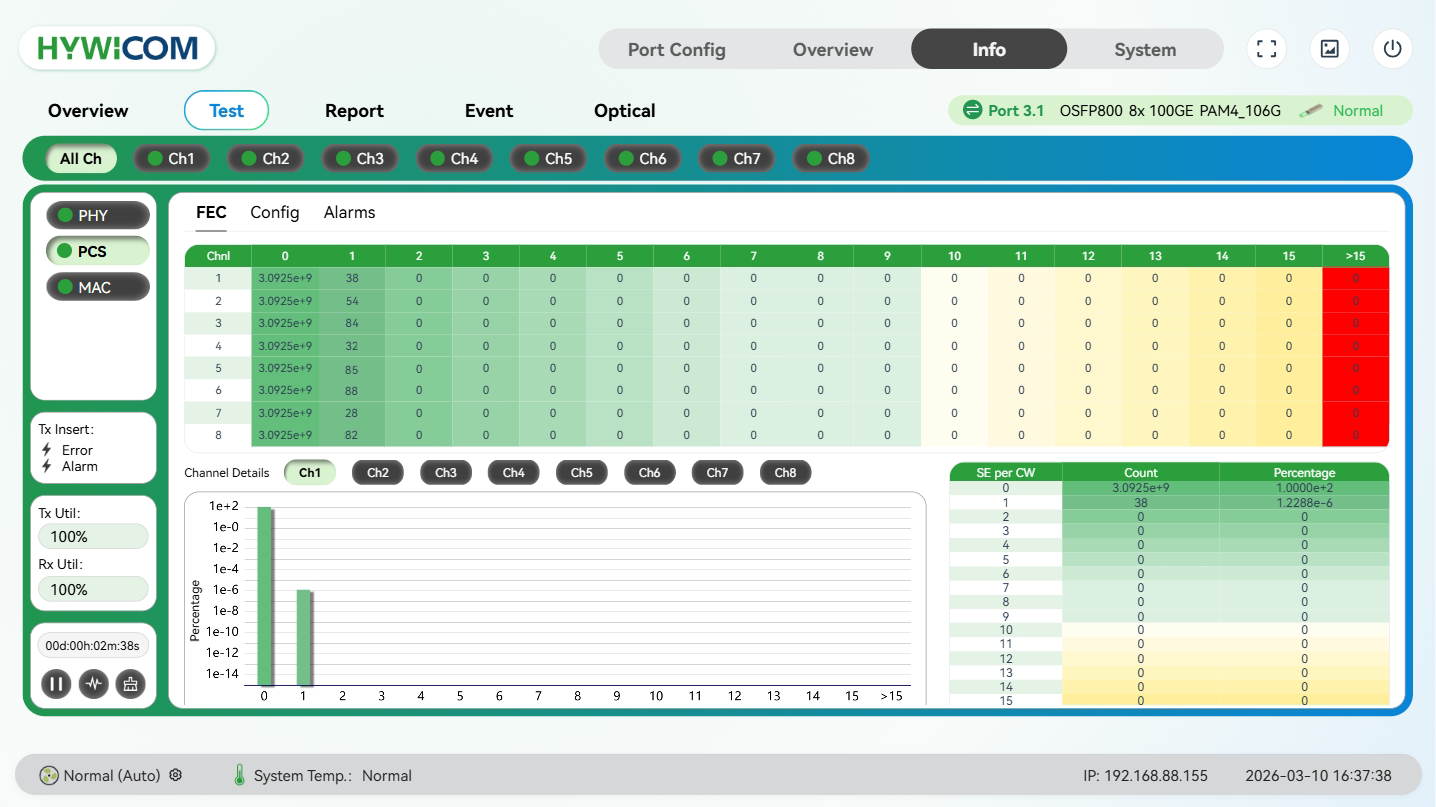

Simple, Efficient, and User‑Friendly

HYWICOM's latest fully graphical intelligent software platform retains its acclaimed user interface for improved operational efficiency, while delivering comprehensive monitoring and testing capabilities.
- User-friendly GUI

  Fully graphical intelligent software platform
- Simple & Easy to Use

  Single-page display for all functions & results
- High Testing Efficiency‌

  Test setup in just 4 steps
Accurately simulates real-world usage scenarios

The FRAEO 8800 supports all Ethernet protocols for 800G applications, enabling simultaneous bi-directional loopback testing for any combination of QSFP-DD800 and OSFP800/RHS optical modules. It also meets 800G 1-to-2 AOC/AEC test requirements for AI and data center applications.
- CMIS Full Compliance Testing

  1,700+ functional tests
- Supports Mainstream Breakout Testing

  1x 800G OSFP <-> 2x 400G OSFP/RHS .etc
- Stress Testing Support

  incl. I2C Multi-rate stress testing
