PIANO OTN Edition

Portable Multi-Port 800G Ethernet & OTN Test Platform

Best Portable Solution for Optical Transport Testing

HYWICOM's PIANO tester isn't just another portable network tester—it redefines the category. Breaking the norms of traditional portable testers, it combines compact design with lab-grade flagship performance.

While other portable testers on the market are limited to testing a single 800G port, PIANO sets a new industry benchmark with full-line-rate parallel testing across four 800G ports. It features the industry's highest port density, scalable up to 8 × 800G ports. Supporting a multi-rate portfolio from 1G to 800G and multiple form factors (CFP2, OSFP, QSFP-DD, SFP+), each port operates independently to enable true mixed-rate testing across all ports. Additionally, it delivers comprehensive protocol analysis, traffic generation and performance validation for Ethernet and OTN services.

Highlights
Compact & Lightweight
Perfect for on-site debug and demos
All Form Factors
OSFP, OSFP-RHS, QSFP-DD
CFP2, SFP
Dual Protocols
OTN &
Ethernet
Max 4-hour Battery Life
Double or triple that from other testers
Best Display
11.6-inch
1080p Full HD
1,000 nits brightness
Gold Winner
MUSE Design Awards

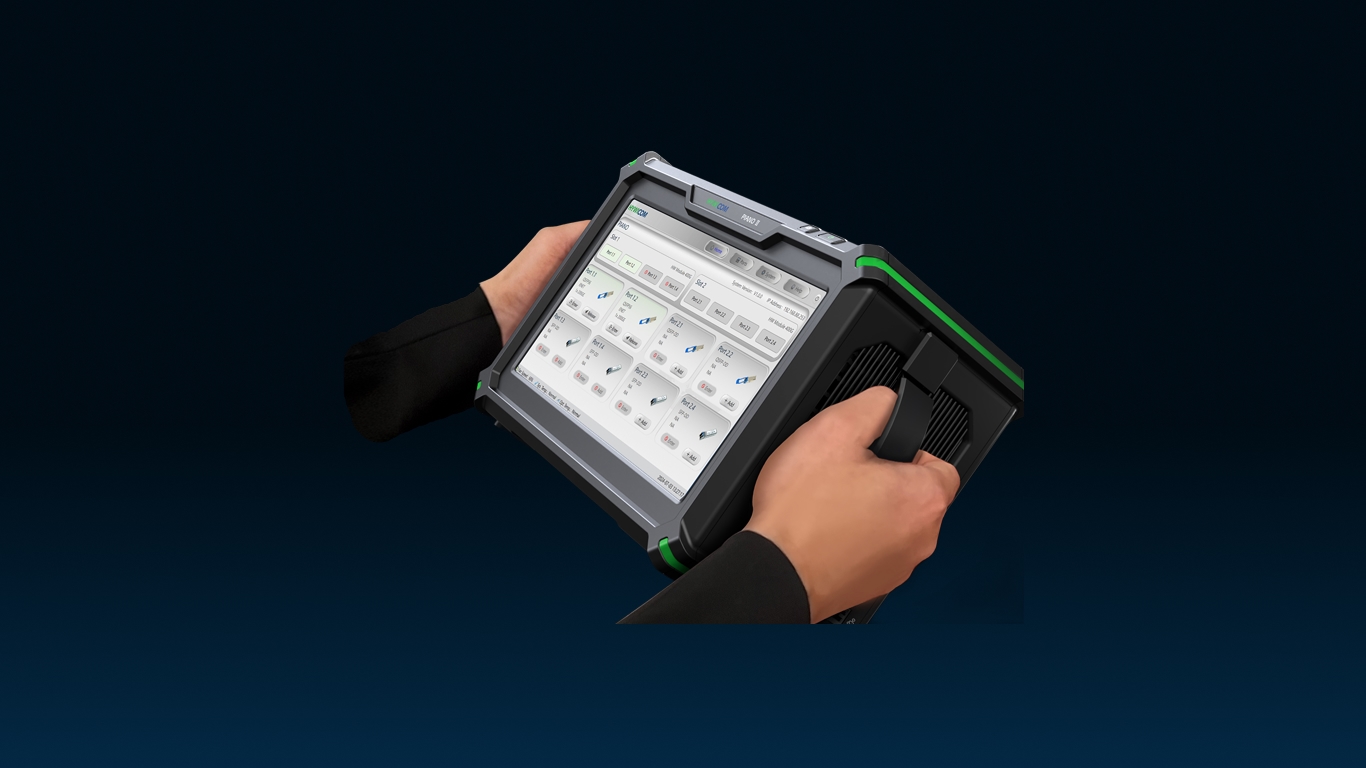

Confident & Joyful Outdoor Testing

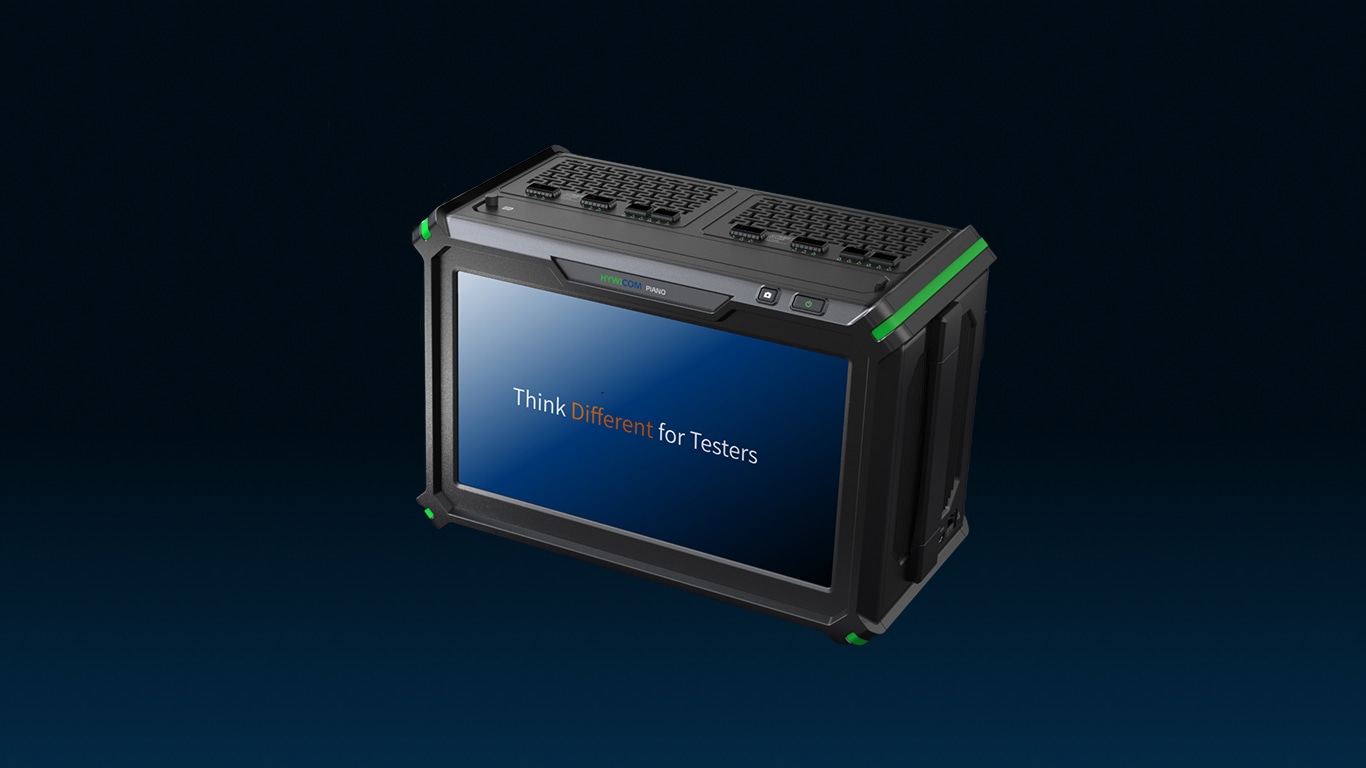

The PIANO OTN features a modular dual-slot design for flexible test module configuration. It is equipped with an 11.6-inch, 1080p Full HD touchscreen with 1,000 nits brightness, plus a 95Wh high-capacity dual-battery system, delivering clear visibility and long battery life for field engineering applications.
- Compact and Lightweight

  Perfect for on-site debug and demos

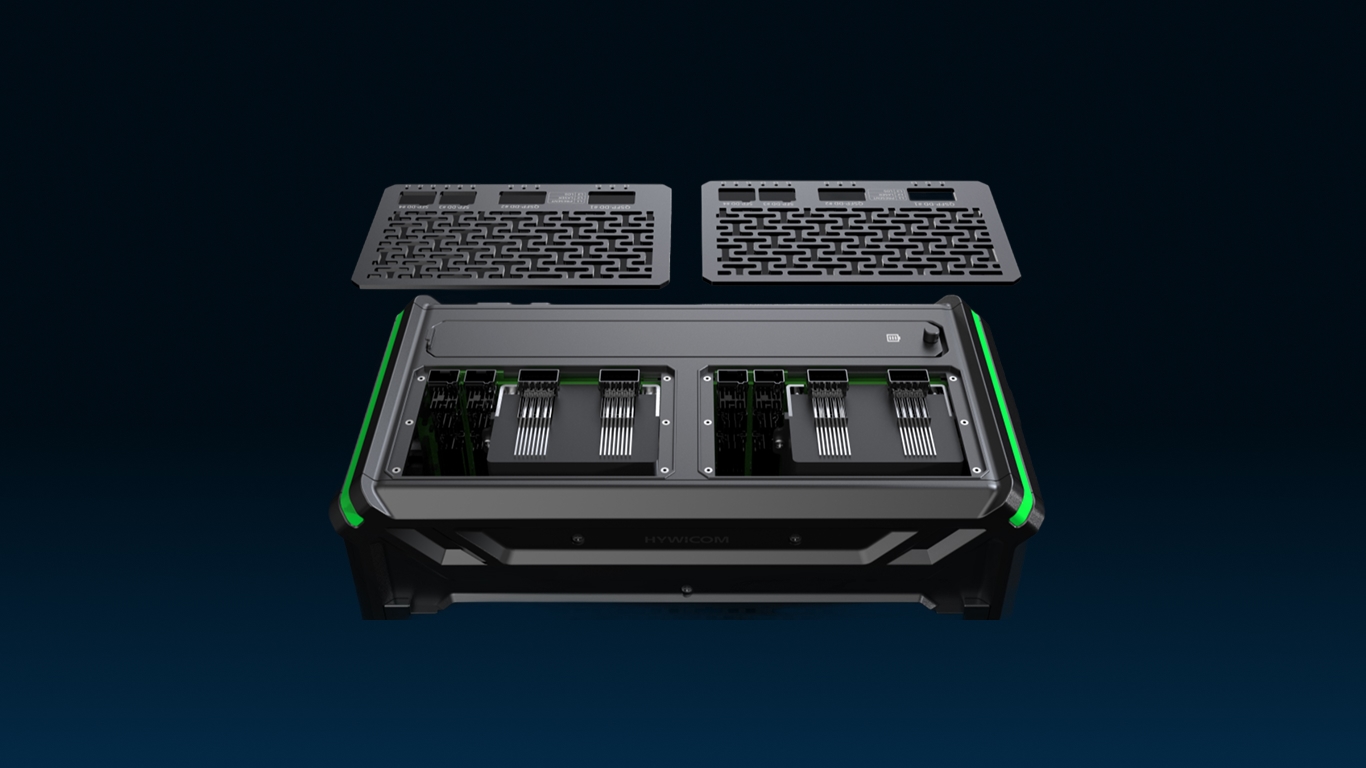

- Dual-slot Architecture

  Future proof
  Flexible configuration and easy upgrade
- Up to 4 Hours of Battery Life

  Worry-free onsite maintenance
- Largest & Finest Display

  11.6-inch, 1080p Full HD touchscreen (1920*1080)
  Clear outdoor display with 1,000 nits brightness

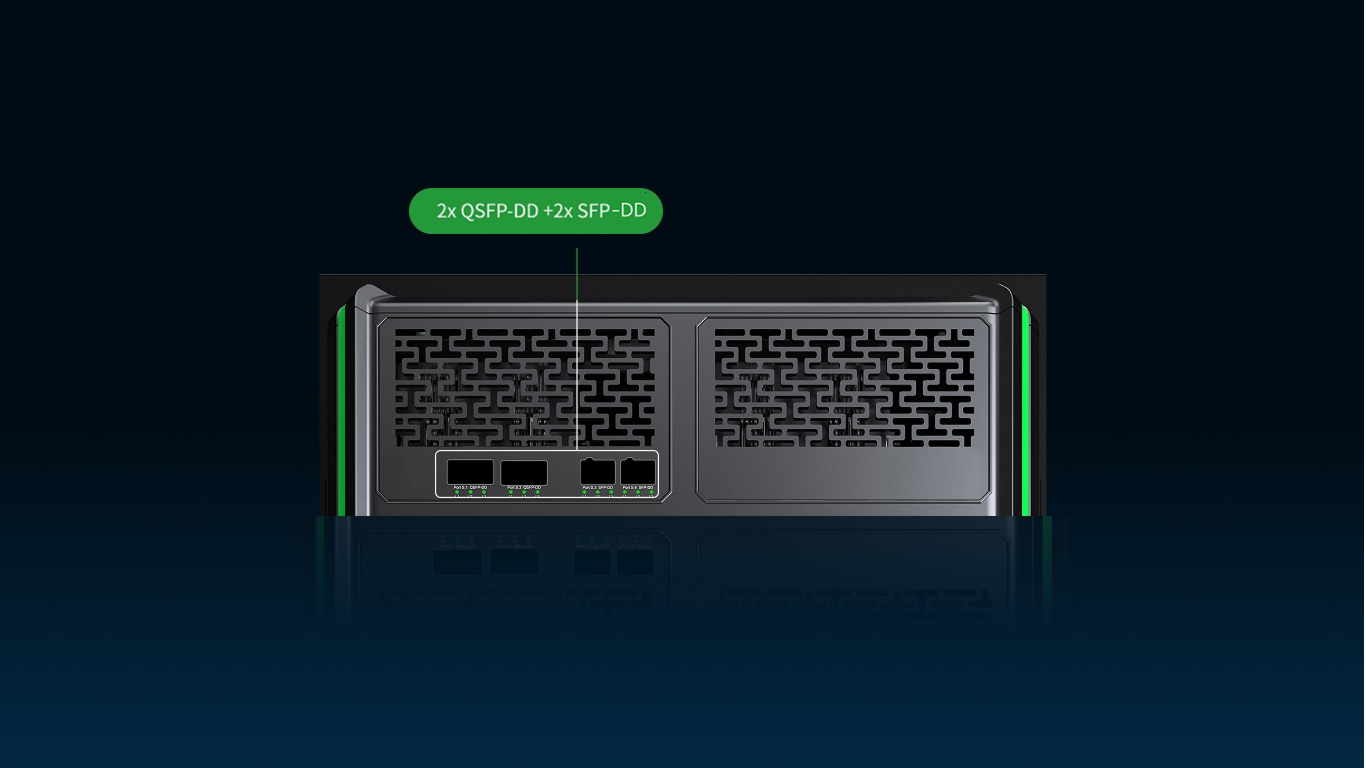

- Hybrid Multi-Port

  2x QSFP-DD +2x SFP-DD
- Hybrid Multi-Port — Dual-slot

  2x QSFP-DD +2x SFP-DD
Easy, Efficieny, and User-friendly

HYWICOM's latest fully graphical intelligent software platform, maintaining the acclaimed user interface for enhanced convenience, with comprehensive monitoring and testing capabilities.

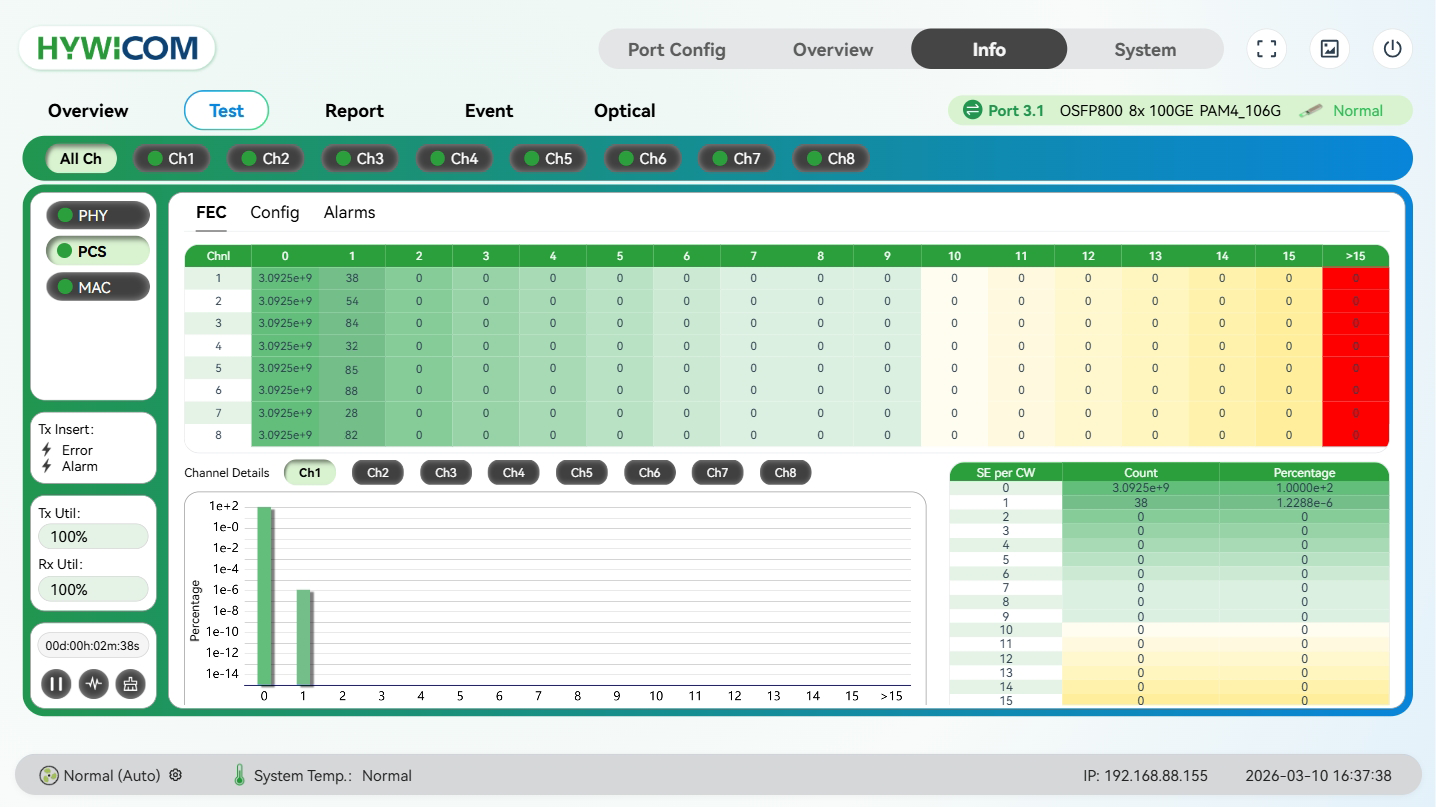

- User-friendly GUI

  Fully graphical intelligent software platform
- Simple and Ease of Use

  Single-page display for all functions & results
- High Testing Efficiency‌

  Just 4 steps to set up a test
‌Comprehensive OTN & Coherent Testing and Verification‌

The ‌PIANO OTN‌ supports full ‌800G-10G OTN optical transport protocols‌, enabling detailed inspection and verification of OTN frame structures, overhead bytes, mapping, and up to second‑order OTN multiplexing OTN multiplexing‌. It also provides ‌precise latency measurement‌ and Service Disruption Time (SDT) measurement‌.
- Ethernet & OTN Dual Protocol Analysis

  800GE-1GE
  400G OTUCn, FlexO, OTU4, OTU2
- Full-coverage Coherent Testing

  800ZR/400ZR/100ZR
  CFP2-DCO, DCI & Satellite optimized
- <10-second Switching between Test Modes

  Compared to other testers, which take 3-5 minutes to cycle
  Significantly boosts efficiency by saving >90% time
